Appendix A: QPANEL

QPANEL Component

QPanel implements a generic container for your components.

QPanel Properties

Field	Type								R/W	Default	Support
Align	INTEGER CONST alNone = 0 CONST alTop = 1 CONST alBottom = 2 CONST alLeft = 3 CONST alRight = 4 CONST alClient = 5								RW	alNone	W
Alignment	INTEGER								RW	taCenter	W
BevelInner	INTEGER '-- Bevel Style CONST bvNone = 0 CONST bvLowered = 1 CONST bvRaised = 2								RW	bvNone	W
BevelOuter	INTEGER '-- Bevel Style CONST bvNone = 0 CONST bvLowered = 1 CONST bvRaised = 2								RW	bvRaised	W
BevelWidth	INTEGER								RW	1	W
BorderStyle	INTEGER								RW	bpNone	W
	'-- Bevel Border CONST bpNone = 0 '-- No visible border CONST bpSingle = 1 '-- Single-line border

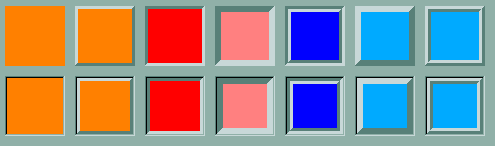

BevelOuter = BevelInner =	bvnone	bvraised	bvLowered	bvLowered	bvLowered	bvraised	bvraised	BevelWidth=3
BevelOuter = BevelInner =	bvnone	bvnone	bvnone	bvLowered	bvraised	bvraised	bvLowered	BevelWidth=3
BorderStyle=bpNone
BorderStyle=bpSingle
Caption	STRING								RW		W
ClientHeight	INTEGER								RW		WX
ClientWidth	INTEGER								RW		WX
Color	INTEGER								RW		W
Cursor	INTEGER								RW	crDefault	W
Enabled	INTEGER								RW	True	WX
Font	QFONT								W		W
Height	INTEGER								RW		WX
Hint	STRING								RW		W
Left	INTEGER								RW	0	WX
Parent	QFORM/QPANEL/QTABCONTROL								W		WX
ShowHint	INTEGER								RW	False	W
TabOrder	INTEGER								RW		W
Tag	INTEGER								RW		WXG
Top	INTEGER								RW	0	WX
Width	INTEGER								RW		WX
Visible	INTEGER								RW	True	WX

QPanel Methods

Method	Type	Description	Params	Support
Repaint	SUB	Refreshes panel and all contents	0	W

QPanel Events

Event	Type	Occurs when...	Params	Support
OnClick	VOID	User clicked on open area of panel	0	WX
OnDblClick	VOID	User double clicked panel	0	W
OnMouseDown	SUB (Button%, X%, Y%, Shift%)	Mouse button held down	4	W
OnMouseMove	SUB (X%, Y%, Shift%)	Mouse moves over panel	3	W
OnMouseUp	SUB (Button%, X%, Y%, Shift%)	Mouse button is released	4	W

QPanel Examples

  DIM Form AS QForm
  DIM Button AS QButton
  DIM Panel AS QPanel

  Panel.Parent = Form
  Panel.Width = 100
  Button.Parent = Panel

  Form.ShowModal
